Description
Hydraulic system is protected from internal damage by a patented by-pass mechanism. Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance.
Fabricated from hard-cast steel with heat-treated critical stress areas. Serrated heat-treated saddle provides generous lifting area and secure grip. Heat-treated extension screw allows low pick-up height adjustment and maximum lift height U.S.
Patented built-in by-pass device protects hydraulic system from over pumping damage. Unique cross-type forged release valve assures positive control. A wide, rugged base provides stability and strength. Critical stress points are reinforced in all models for added durability and dependability.

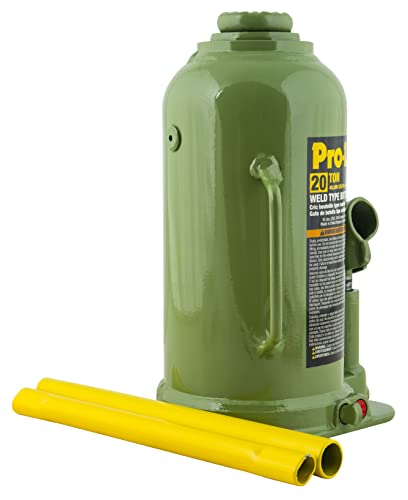

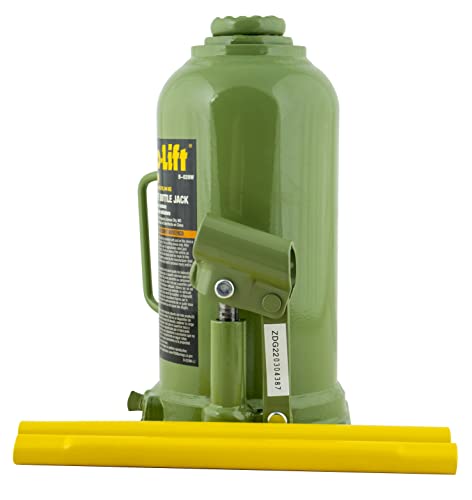

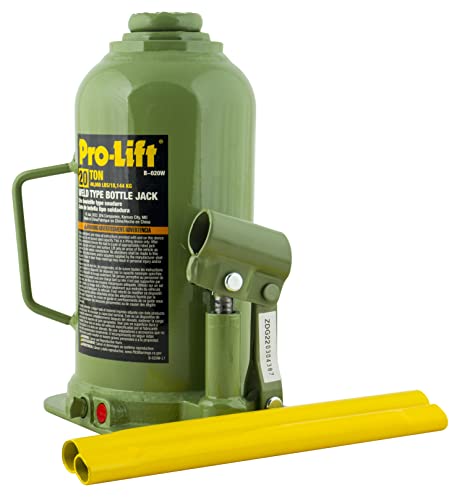

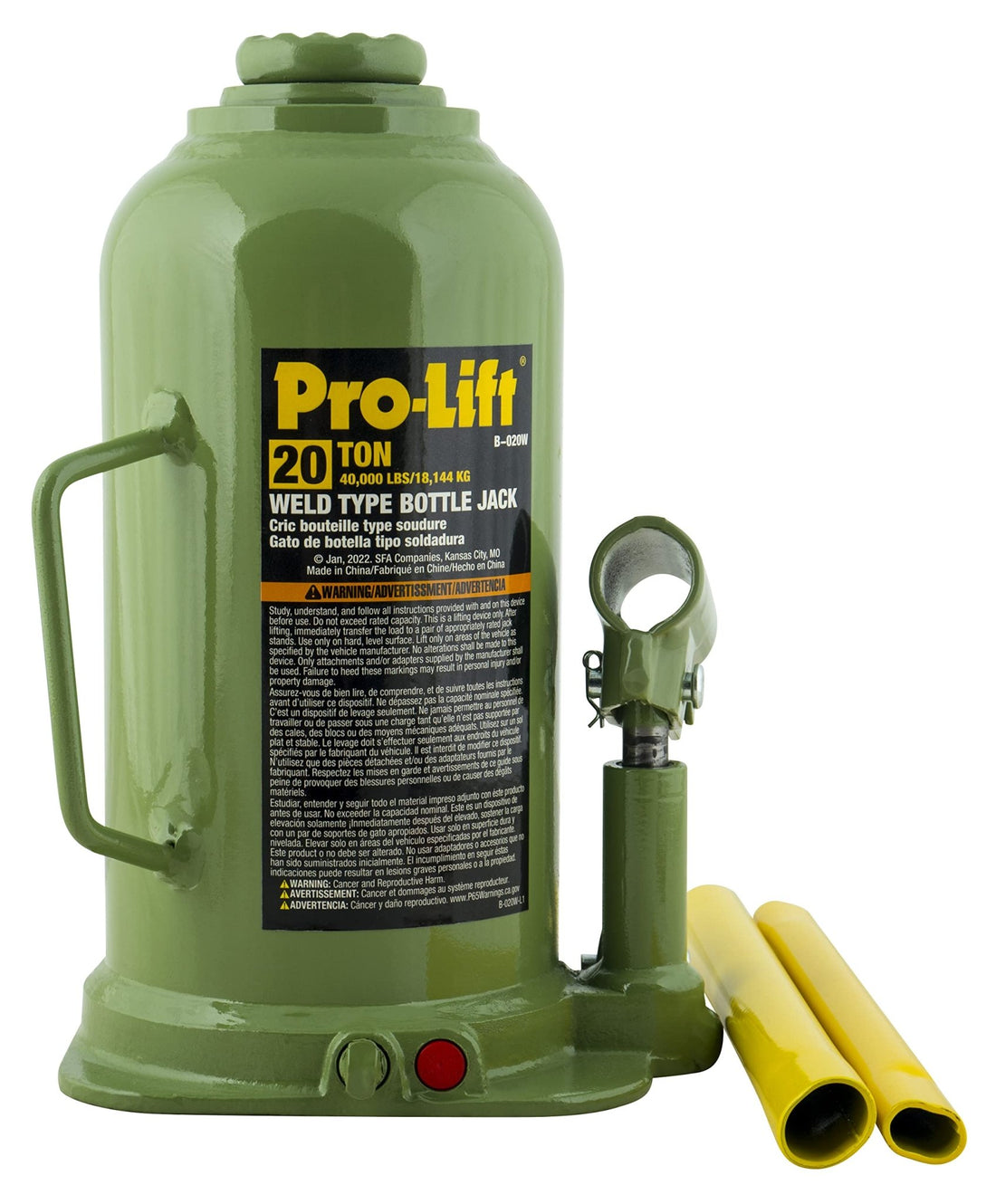

- Pro-Lift B-020W Bottle Jack is a welded bottle jack with 20 ton capacity that is designed for both residential and commercial use. Its serrated, heat treated saddle provides generous lifting area and secure grip.
- With the lifting range of 9-3/8" to 17-1/2", it allows you to work in the confined space and fit under low vehicles; and the adjustable screw top extension adds the versatility to allow low pick-up height adjustment and maximum lift height.
- Fabricated from hard-cast steel with heat-treated critical stress areas, and the inner/outer welded structure delivers leak-free performance. And, the wide rugged base provides stability and strength. Critical stress points are reinforced for added durability and dependability.
- The pressure pump is designed to lift with minimal effort; Integrated with a patented by-pass mechanism and patented built-in by-pass device protects hydraulic system that protects the hydraulic system from extending beyond limits.
- This welded bottle jack meets ASME PASE safety standards and includes a limited 1 year manufacturer warranty from the date of purchase.
Capacity: 20 Ton
Type: Welded Bottle Jack
Based Size: 5-1/4 x 6 inches
Min Height: 9-3/8 inches
Max Height: 17-1/2 inches
Extension Screw: 2-3/8 inches
Weight: 43 Lbs Handle: 2 Pieces
Manufacturer Warranty: One Year
B-020W is covered with One Year manufacturer warranty from the date of the purchase.
